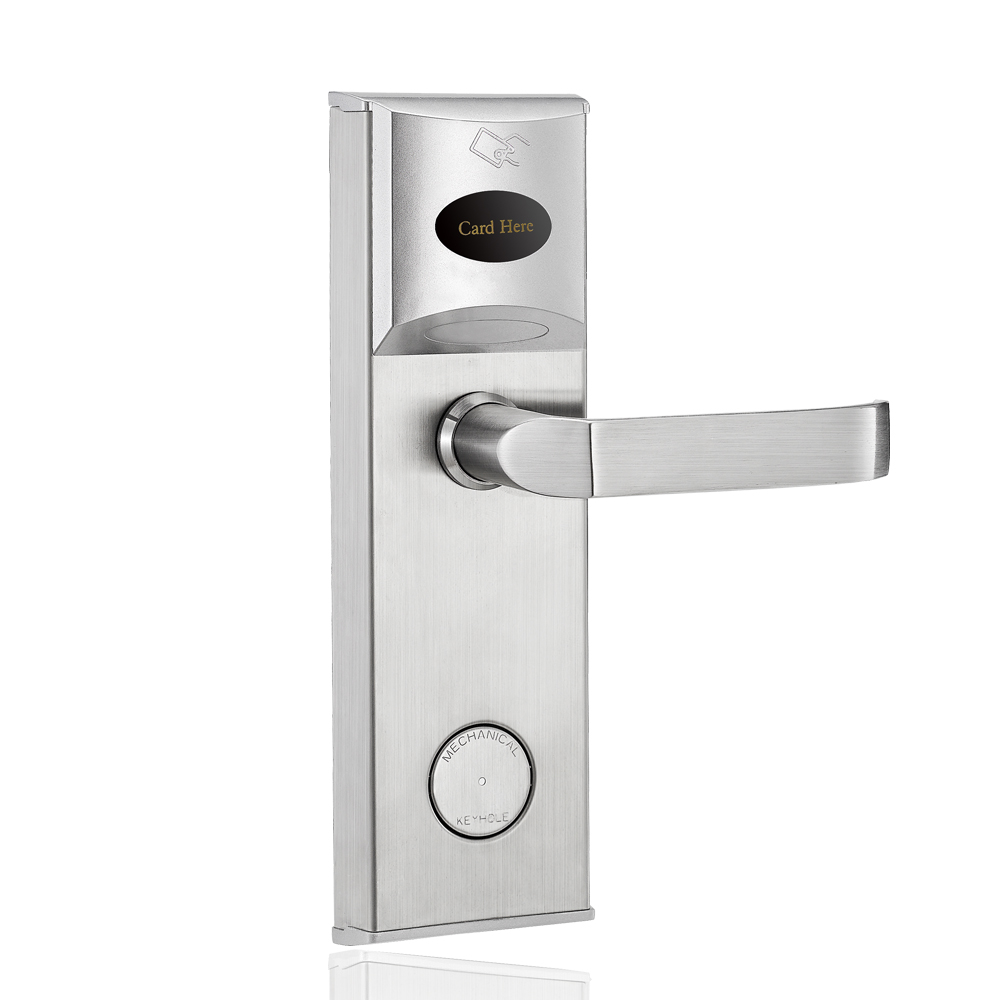

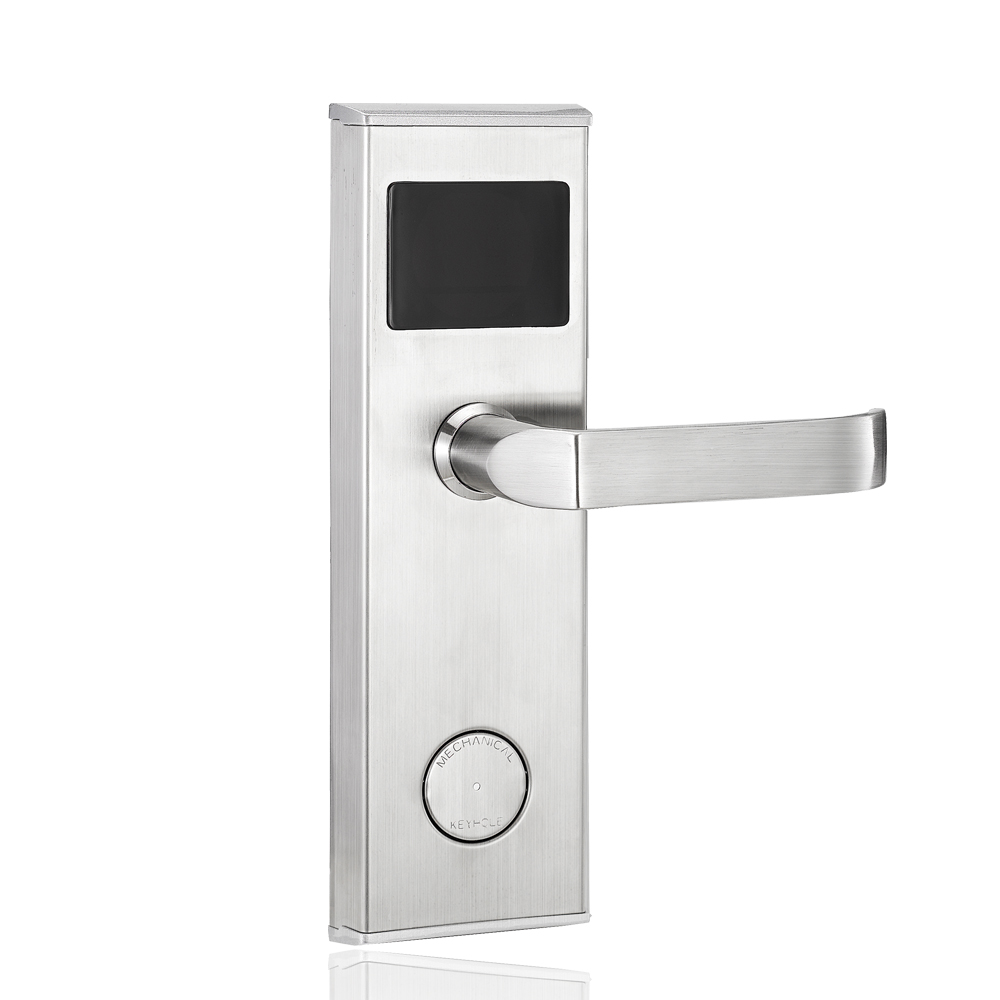

- Model Number :RX118-Y-S
- Card Type: Temic/Mifare card
- Starting time: <1 second
- Color: Sliver
- The capacity of card: 200
- Working Voltage: Direct current 6V,4 pieces of alkaline battery
- Static Static power consumption: <4μA
- Dynamic power consumption: About 200 mA
- Working temperature: -20 to 50 centigrade
- Working humidity: ≤ 80%
- Ways to Unlock: Card, Mechanical Key
- Sensor distance: 3~5cm
- Lock weight: 2.5~3.4kg
- Battery life: about 12~16 months
- Voltage alarm: Available
- Fake closing alarm: Available

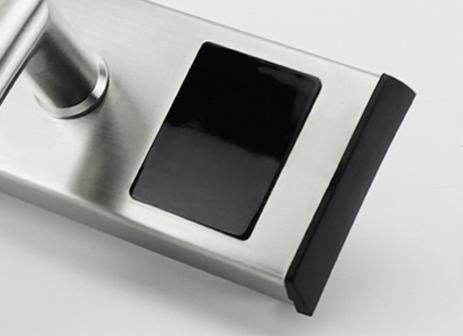

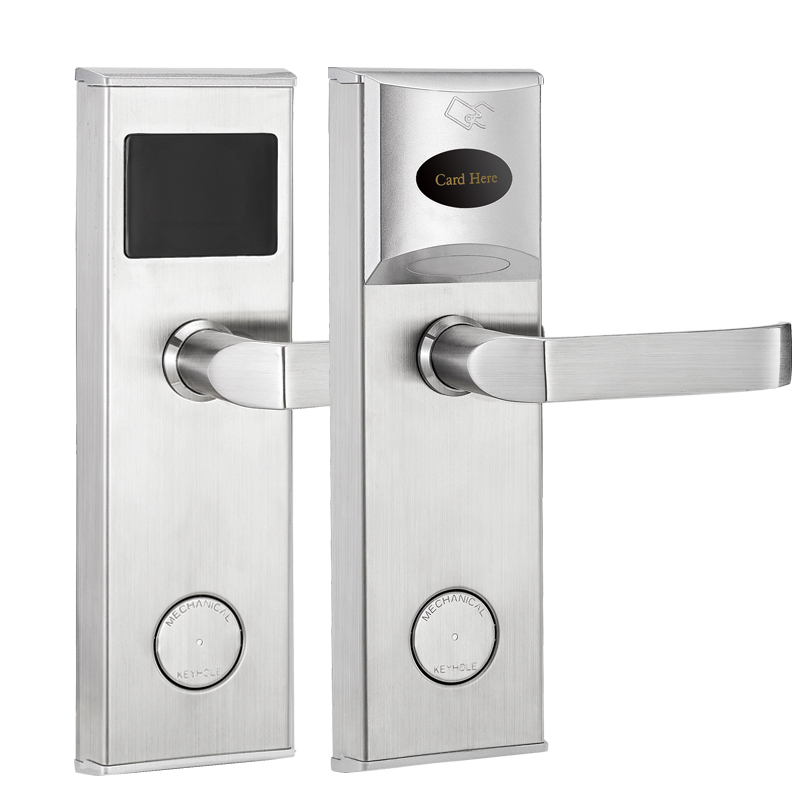

Card sensor area
- non-contact sensor cards
- Temic/M1 card

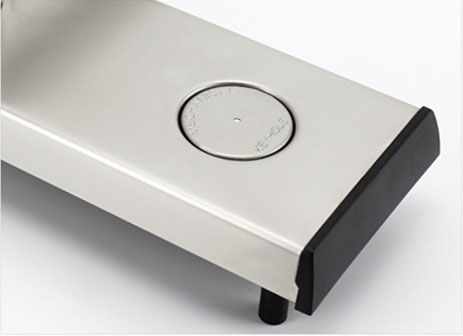

Hideen key hole
The key hole is hidden at the panel
Safe and beautiful

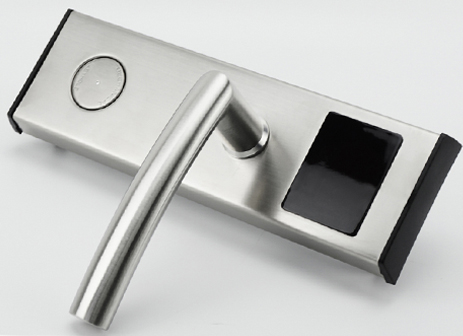

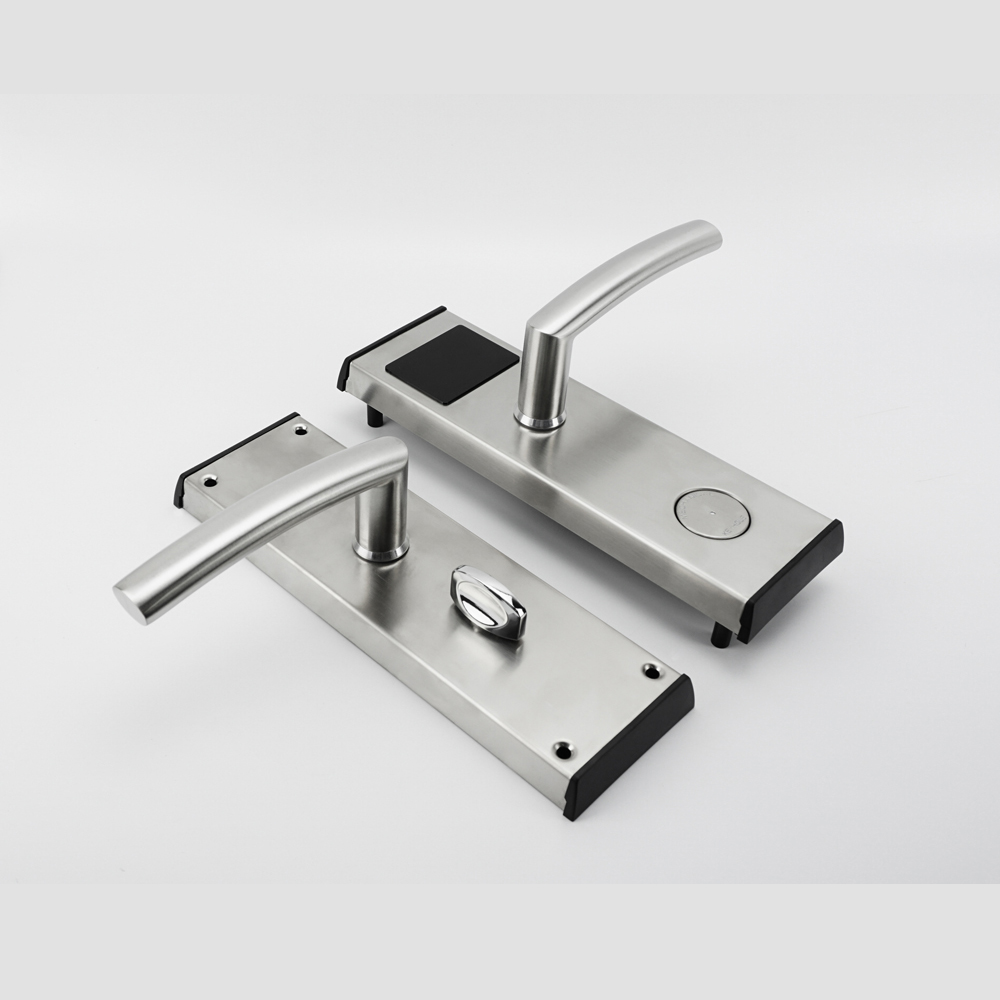

Handle design
- The wave-shaped push-down handle is more comfortable to use.
- Hands tested over 300000 times

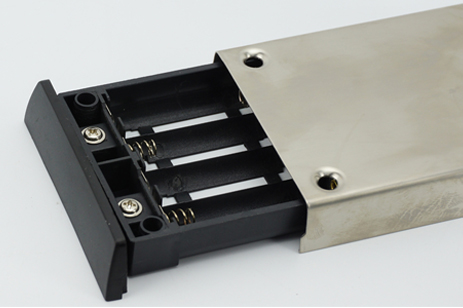

Battery box
- Use 4pcs AA alkaline battery
- The lock information will not loss when power off

For Hotel
we can provide a complete hotel system, included
- Hotel locks,
- card encoder,
- cards,
- enery power siwtch,

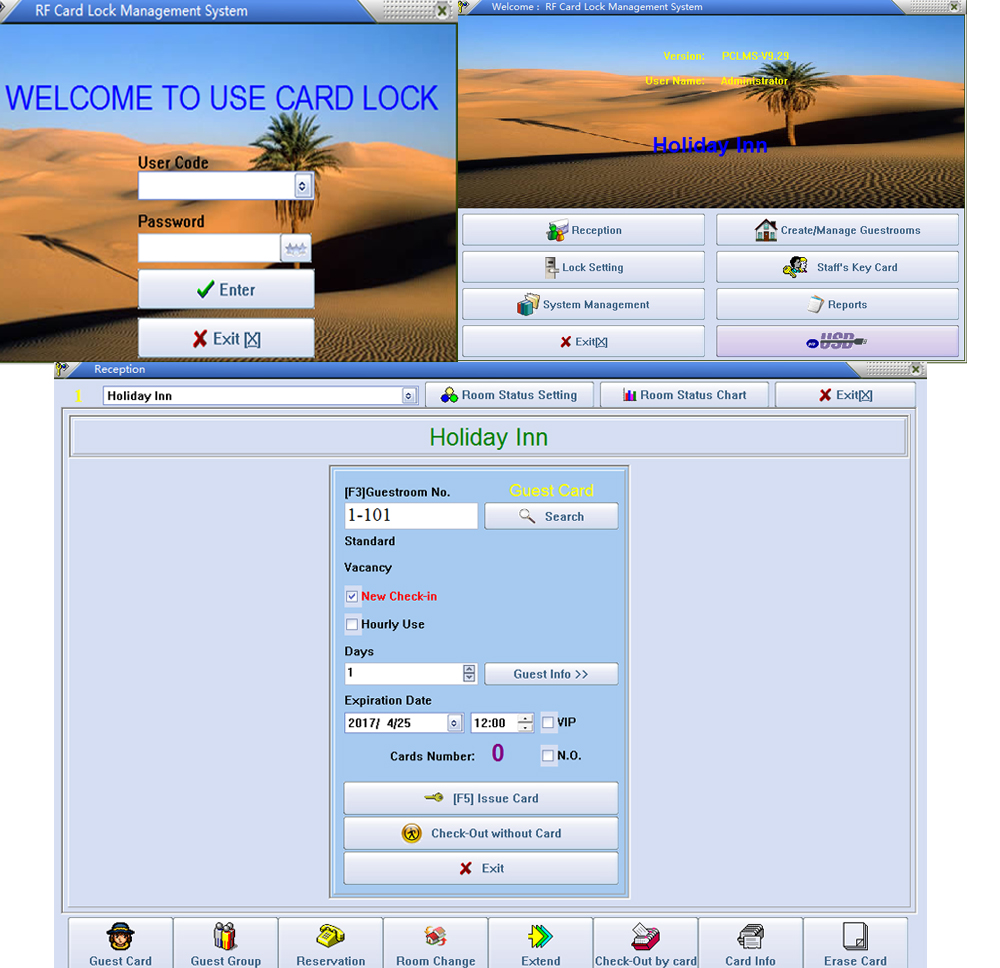

- lock software(free) ect…….

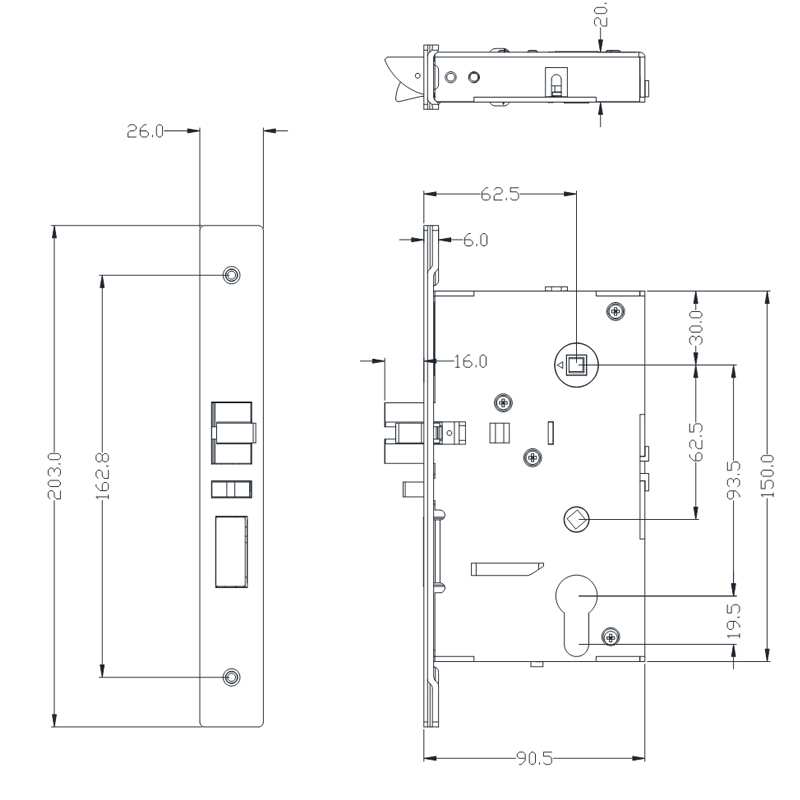

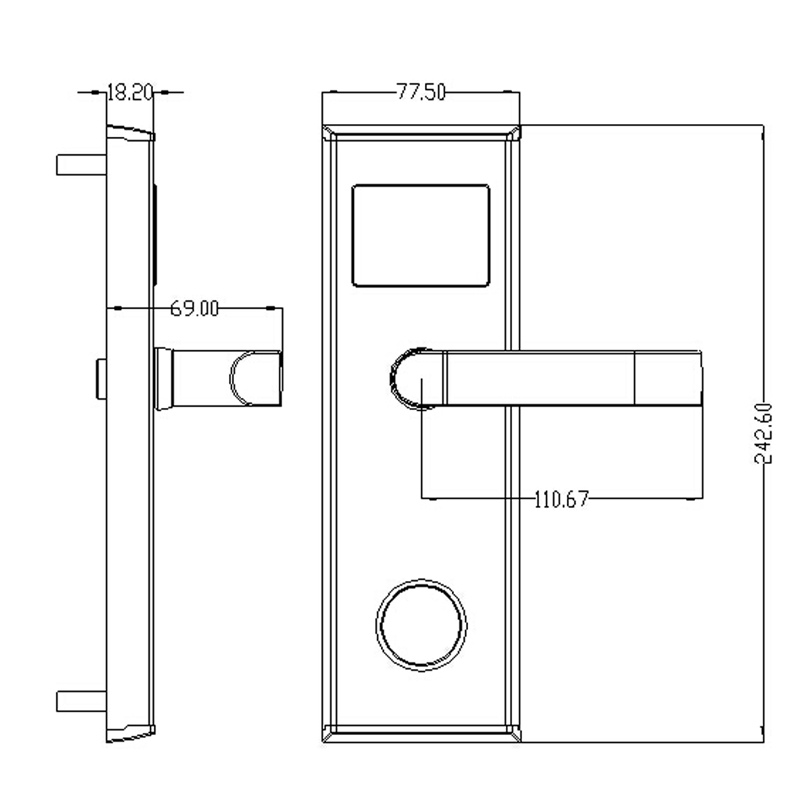

Lock size
